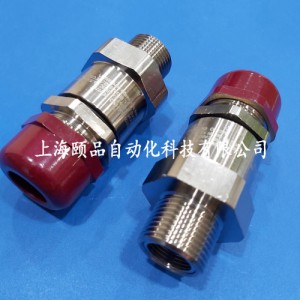

CMP帶膠泥密封防爆格蘭（PXSS2K系列）

點擊圖片查看原圖

品牌：	CMP防爆格蘭
CMP防爆格蘭：	PXSS2K系列
單價：	698.60元/只
所在地：	上海
有效期至：	長期有效
最后更新：	2025-06-10 09:15
瀏覽次數：	743

店鋪基本資料信息

上海頤品自動化科技有限公司
[誠信檔案]
聯系人張凱文(先生) 銷售經理
會員 [當前離線]
郵件sales@epin-china.com
電話021-60486851
地址上海市浦衛公路16393號5幢346室

產品詳細說明

CMP帶膠泥密封防爆格蘭（PXSS2K-M20系列）

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭

CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭

CMP帶膠泥密封防爆格蘭（PXSS2K-M20系列）

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

PXSS2K | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Barrier Cable Gland

For all types of Unarmoured & Braid Armour Cables

Double Seal, Globally Approved, Explosive Atmosphere Barrier Cable Gland

• Direct & remote installation
• Superior levels of cable retention
• Displacement type environmental seal
• Compound barrier type flameproof seal
• Designed to prevent Coldflow
• Deluge protected
• -60°C to +85°C
• Class I Zone 1, 21 and Zone 2, 22
• Globally marked, IECEx, ATEX, UL & cCSAus
• once any cable inner sheath/bedding has been removed, the RapidEx liquid resin barrier seals directly around the internal cable cores, completely eliminating any risk of coldflow on all cable types

CERTIFICATES

PRODUCT SELECTION TABLE

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

Cable Gland Size	Available Entry Threads 'C' (Alternate Metric Thread Lengths Available)					Number of Cores	Diameter Over Conductors 'A'	Cable Bedding Diameter 'G'	Overall Cable Diameter 'B'		Across Flats 'D'	Across Corners 'D'	Protrusion Length 'F'	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option			Cable Bedding Diameter 'G'	Overall Cable Diameter 'B'		Across Flats 'D'	Across Corners 'D'		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) 'E'	NPT	Thread Length (NPT) 'E'	NPT			Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½'	19.9	¾"	21	8.6	8.6	3.1	8.6	30.0	33.0	53.1	20S16	PXSS2K	1RA	PVC06	0.20
20S	M20	15.0	½'	19.9	¾"	21	11.7	11.7	6.1	11.7	30.0	33.0	53.1	20S	PXSS2K	1RA	PVC06	0.20
20	M20	15.0	½'	19.9	¾"	21	12.6	12.9	6.5	14.0	30.0	33.0	54.2	20	PXSS2K	1RA	PVC06	0.20
20L	M20	15.0	½'	19.9	¾"	21	12.6	12.9	10.0	15.9	30.0	33.0	54.2	20L	PXSS2K	1RA	PVC06	0.20
25	M25	15.0	¾'	20.2	1"	30	17.5	17.9	11.1	20.0	36.0	39.6	60.0	25	PXSS2K	1RA	PVC09	0.33
32	M32	15.0	1'	25.0	1 ¼"	38	23.6	23.9	17.0	26.3	41.0	45.1	61.1	32	PXSS2K	1RA	PVC10	0.39
32L	M32	15.0	1'	25.0	1 ¼"	38	23.6	23.9	20.0	27.4	41.0	45.1	61.1	32L	PXSS2K	1RA	PVC10	0.59
40	M40	15.0	1 ¼'	25.6	1 ½"	59	30.0	30.3	22.0	32.1	50.0	55.0	62.4	40	PXSS2K	1RA	PVC13	0.56
50S	M50	15.0	1 ½'	26.1	2"	89	36.6	36.9	29.5	38.2	55.0	60.5	65.2	50S	PXSS2K	1RA	PVC15	0.66
50	M50	15.0	2'	26.9	2 ½"	115	41.0	41.3	35.6	44.0	60.0	66.0	67.6	50	PXSS2K	1RA	PVC18	0.73
63S	M63	15.0	2'	26.9	2 ½"	115	47.9	48.4	40.1	49.9	70.1	77.1	71.1	63S	PXSS2K	1RA	PVC21	1.07
63	M63	15.0	2 ½'	39.9	3"	115	53.7	54.0	47.2	55.9	75.0	82.5	70.4	63	PXSS2K	1RA	PVC23	1.06
75S	M75	15.0	2 ½'	39.9	3"	140	59.9	60.2	52.8	61.9	80.0	88.0	75.3	75S	PXSS2K	1RA	PVC25	1.30
75	M75	15.0	3'	41.5	3 ½"	140	64.3	64.2	59.1	67.9	85.0	93.5	74.9	75	PXSS2K	1RA	PVC27	1.30
90	M90	24.0	3 ½'	42.8	4"	140	75.3	75.6	66.6	79.4	108.0	118.8	94.8	90	PXSS2K	1RA	PVC31	3.02
100	M100	24.0	3 ½'	42.8	4"	200	85.6	85.9	76.0	90.9	123.0	135.3	86.3	100	PXSS2K	1RA	LSF33	4.00
Dimensions displayed in millimeters unless otherwise stated
