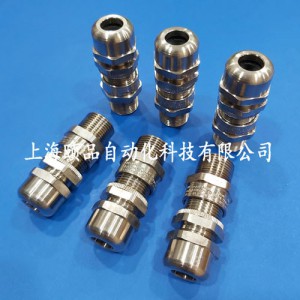

英國CMP非鎧雙密封防爆格蘭SS2K系列(CMP SS2K cable gland)
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭
CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
SS2K | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Unarmoured & Braid Armour Cables
Double Seal, Globally Approved, Explosive Atmosphere Cable Gland
Provides double seal on outer sheath or single on outer & inner
Direct & remote installation
Superior levels of cable retention
Displacement type flameproof seals
Deluge protected
-60°C to +130°C (standard), -20°C to 200°C (ThermEx option SS2KHT)
Ex e only version available
Globally marked, IECEx, ATEX & CSA
PRODUCT SELECTION TABLE
| Cable Gland Size |
Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) |
Cable
Bedding
Diameter
＇A＇ |
Overall
Cable
Diameter
＇B＇ |
Across
Flats
＇D＇ |
Across
Corners
＇D＇ |
Protrusion
Length ＇F＇ |
Combined Ordering Reference
(*Brass Metric) |
Shroud |
Cable
Gland
Weight
(Kgs) |
| Standard |
Option |
| Metric |
Thread Length (Metric) ＇E＇ |
NPT |
Thread Length
(NPT) ＇E＇ |
NPT |
Min |
Max |
Min |
Max |
Max |
Max |
Size |
Type |
Ordering
Suffix |
| 20S16 |
M20 |
15.0 |
½＇ |
19.9 |
¾" |
3.2 |
8.6 |
3.2 |
8.6 |
24.0 |
26.4 |
49.0 |
20S16 |
SS2K |
1RA |
PVC04 |
0.14 |
| 20S |
M20 |
15.0 |
½＇ |
19.9 |
¾" |
6.1 |
11.7 |
6.1 |
11.7 |
24.0 |
26.4 |
49.0 |
20S |
SS2K |
1RA |
PVC04 |
0.13 |
| 20 |
M20 |
15.0 |
½＇ |
19.9 |
¾" |
6.5 |
14.0 |
6.5 |
14.0 |
27.0 |
29.7 |
54.0 |
20 |
SS2K |
1RA |
PVC05 |
0.16 |
| 25 |
M25 |
15.0 |
¾＇ |
20.2 |
1" |
11.1 |
20.0 |
11.1 |
20.0 |
36.0 |
39.6 |
66.0 |
25 |
SS2K |
1RA |
PVC09 |
0.30 |
| 32 |
M32 |
15.0 |
1＇ |
25.0 |
1 ¼" |
17.0 |
26.3 |
17.0 |
26.3 |
41.0 |
45.1 |
67.0 |
32 |
SS2K |
1RA |
PVC10 |
0.35 |
| 40 |
M40 |
15.0 |
1 ¼＇ |
25.6 |
1 ½" |
23.5 |
32.1 |
23.5 |
32.1 |
50.0 |
55.0 |
70.0 |
40 |
SS2K |
1RA |
PVC13 |
0.50 |
| 50S |
M50 |
15.0 |
1 ½＇ |
26.1 |
2" |
31.0 |
38.2 |
31.0 |
38.2 |
55.0 |
60.5 |
65.0 |
50S |
SS2K |
1RA |
PVC15 |
0.56 |
| 50 |
M50 |
15.0 |
2＇ |
26.9 |
2 ½" |
35.6 |
44.0 |
35.6 |
44.0 |
60.0 |
66.0 |
70.0 |
50 |
SS2K |
1RA |
PVC18 |
0.59 |
| 63S |
M63 |
15.0 |
2＇ |
26.9 |
2 ½" |
41.5 |
49.9 |
41.5 |
49.9 |
70.5 |
77.6 |
70.0 |
63S |
SS2K |
1RA |
PVC21 |
0.89 |
| 63 |
M63 |
15.0 |
2 ½＇ |
39.9 |
3" |
47.2 |
55.9 |
47.2 |
55.9 |
75.0 |
82.5 |
71.0 |
63 |
SS2K |
1RA |
PVC23 |
0.85 |
| 75S |
M75 |
15.0 |
2 ½＇ |
39.9 |
3" |
54.0 |
61.9 |
54.0 |
61.9 |
80.0 |
88.0 |
70.0 |
75S |
SS2K |
1RA |
PVC25 |
1.02 |
| 75 |
M75 |
15.0 |
3＇ |
41.5 |
3 ½" |
61.1 |
67.9 |
61.1 |
67.9 |
84.0 |
92.4 |
75.0 |
75 |
SS2K |
1RA |
PVC26 |
0.99 |
| 90 |
M90 |
24.0 |
3 ½＇ |
42.8 |
4" |
66.6 |
79.4 |
66.6 |
79.4 |
108.0 |
118.8 |
113.0 |
90 |
SS2K |
1RA |
PVC31 |
2.99 |
| 100 |
M100 |
24.0 |
3 ½＇ |
42.8 |
4" |
76.0 |
90.9 |
76.0 |
90.9 |
123.0 |
134.2 |
106.0 |
100 |
SS2K |
1RA |
LSF33 |
3.39 |
| 115 |
M115 |
24.0 |
4" |
44.0 |
5" |
86.0 |
97.9 |
86.0 |
97.9 |
133.4 |
146.7 |
128.0 |
115 |
SS2K |
1RA |
LSF34 |
5.32 |
| 130 |
M130 |
24.0 |
5" |
46.8 |
- |
97.0 |
114.9 |
97.0 |
114.9 |
152.4 |
167.6 |
129.0 |
130 |
SS2K |
1RA |
LSF35 |
6.35 |
| Dimensions displayed in millimeters unless otherwise stated |
CMP非鎧雙密封防爆格蘭（SS2K-CMP Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
