英國CMP不銹鋼鎧裝防爆格蘭TE1FU系列（CMP TE1FU cable gland）

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

E1FW | Ex eb, Ex db, Ex nR, Ex ta, Explosive Atmosphere Cable Gland

For all types of Steel & Aluminium Wire Armoured Cables

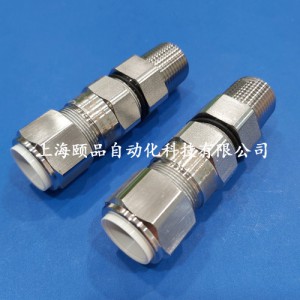

英國CMP不銹鋼鎧裝防爆格蘭（TE1FU系列）

CMP cable gland（TE1FU series）

EPIN AUTOMATION Hotline：4008552521

CMP不銹鋼鎧裝防爆格蘭（TE1FU-CMP Cable Gland）

Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥

CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司

TE1FU | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland

For all types of Armoured Cables

Globally Approved, Explosive Atmosphere Cable Gland

• Stainless steel compact design

• Fully sequential, three step installation procedure

• Reduces installation times, cost & risk

• Direct & remote installation

• Unique compensating displacement seal system(CDS)

• metal-to-metal installation regardless of cable bedding diameter

• Designed to prevent Coldflow, see CMP Technical document TS002 (available upon request)

• Integral protected deluge seal

• Controlled outer ‘load retention’ seal

• Unique OSTG prevents overtightening

• -60°C to +130°C

• Globally marked, IECEx, ATEX & cCSAus

• Superior EMC performance

• Patents granted: GB 1077517

CERTIFICATES

PRODUCT SELECTION TABLETA:IMAGE="" XMLNS="＇HTTP://WWW.W3.ORG/2000/SVG＇" WIDTH="＇200＇" HEIGHT="＇200＇" VIEWBOX="＇0" FILL="＇%232A80EB＇" D="＇M145.659" CENTER="" RIGHT:="" :="" STYLE="PADDING: 0PX; MARGIN: 0PX; BOX-SIZING: INHERIT; POSITION: ABSOLUTE; WIDTH: 20PX; HEIGHT: 20PX; BACKGROUND-IMAGE: URL(""); BACKGROUND-POSITION: INITIAL; BACKGROUND-SIZE: INITIAL; BACKGROUND-REPEAT: INITIAL; BACKGROUND-ATTACHMENT: INITIAL; BACKGROUND-ORIGIN: INITIAL; BACKGROUND-CLIP: INITIAL; DISPLAY: INLINE !IMPORTANT;">

Cable Gland Size	Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter ＇A＇		Overall Cable Diameter ＇B＇		Armour Range				Across Flats ＇D＇	Across Corners ＇D＇	Protrusion Length ＇F＇	Combined Ordering Reference (Stainless Steel Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter ＇A＇		Overall Cable Diameter ＇B＇		Grooved Cone (X)		Stepped Cone (W)		Across Flats ＇D＇	Across Corners ＇D＇		Combined Ordering Reference (Stainless Steel Metric)
	Metric	Thread Length (Metric) ＇E＇	NPT	Thread Length (NPT) ＇E＇	NPT	Min	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½＇	19.9	¾"	3.1	8.6	6.1	13.1	0.3	1.0	0.8	1.25	24.0	26.4	57.3	20S16	TE1FU	1RA4	PVC04	0.15
20S	M20	15.0	½＇	19.9	¾"	6.1	11.6	9.5	15.9	0.3	1.0	0.8	1.25	24.0	26.4	57.3	20S	TE1FU	1RA4	PVC04	0.15
20	M20	15.0	½＇	19.9	¾"	6.5	13.9	12.5	20.9	0.4	1.0	0.8	1.25	30.5	33.6	61.2	20	TE1FU	1RA4	PVC06	0.23
25S	M25	15.0	¾＇	20.2	1"	11.1	19.9	14.0	22.0	0.4	1.2	1.25	1.6	37.5	41.3	74.0	25S	TE1FU	1RA4	PVC09	0.34
25	M25	15.0	¾＇	20.2	1"	11.1	19.9	18.2	26.2	0.4	1.2	1.25	1.6	37.5	41.3	74.0	25	TE1FU	1RA4	PVC09	0.34
32	M32	15.0	1＇	25.0	1 ¼"	17.0	26.2	23.7	33.9	0.4	1.2	1.6	2.0	46.0	50.6	78.2	32	TE1FU	1RA4	PVC11	0.55
40	M40	15.0	1 ¼＇	25.6	1 ½"	22.0	32.1	27.9	40.4	0.4	1.6	1.6	2.0	55.0	60.5	81.6	40	TE1FU	1RA4	PVC15	0.79
50S	M50	15.0	1 ½＇	26.1	2"	29.5	38.1	35.2	46.7	0.4	1.6	2.0	2.5	60.0	66.0	88.1	50S	TE1FU	1RA4	PVC18	1.00
50	M50	15.0	2＇	26.9	2 ½"	35.6	44.0	40.4	53.0	0.6	1.6	2.0	2.5	70.1	77.1	91.2	50	TE1FU	1RA4	PVC21	1.37
63S	M63	15.0	2＇	26.9	2 ½"	40.1	49.9	45.6	59.4	0.6	1.6	2.0	2.5	75.0	82.4	90.5	63S	TE1FU	1RA4	PVC23	1.50
63	M63	15.0	2 ½＇	39.9	3"	47.2	55.9	54.6	65.8	0.6	1.6	2.0	2.5	80.0	88.0	90.3	63	TE1FU	1RA4	PVC25	1.56
75S	M75	15.0	2 ½＇	39.9	3"	52.8	61.9	59.0	72.0	0.6	1.6	2.0	2.5	90.0	99.0	104.7	75S	TE1FU	1RA4	PVC28	2.45
75	M75	15.0	3＇	41.5	3 ½"	59.1	67.9	66.7	78.4	0.6	1.6	2.5	3.0	100.0	110.0	110.8	75	TE1FU	1RA4	PVC30	3.15
90	M90	24.0	3 ½＇	42.8	4"	66.6	78.6	76.2	90.3	0.8	1.6	3.15	4.0	115.0	126.5	135.5	90	TE1FU	1RA4	PVC32	4.62
100	M100	24.0	3 ½＇	42.8	4"	76.0	90.9	86.1	101.4	0.8	1.6	3.15	4.0	127.0	139.7	126.8	100	TE1FU	1RA4	LSF33	4.95
115	M115	24.0	4"	44.0	5"	86.0	97.9	101.5	110.2	0.8	1.6	3.15	4.0	138.0	151.8	157.5	115	TE1FU	1RA4	LSF34	7.60
130	M130	24.0	5"	46.8	-	97.0	114.9	110.2	123.2	0.8	1.6	3.15	4.0	157.0	172.7	164.5	130	TE1FU	1RA4	LSF35	8.73
Dimensions displayed in millimeters unless otherwise stated

TECHNICAL ILLUSTRATION

CMP鎧裝防爆格蘭（CMP Cable Gland）
