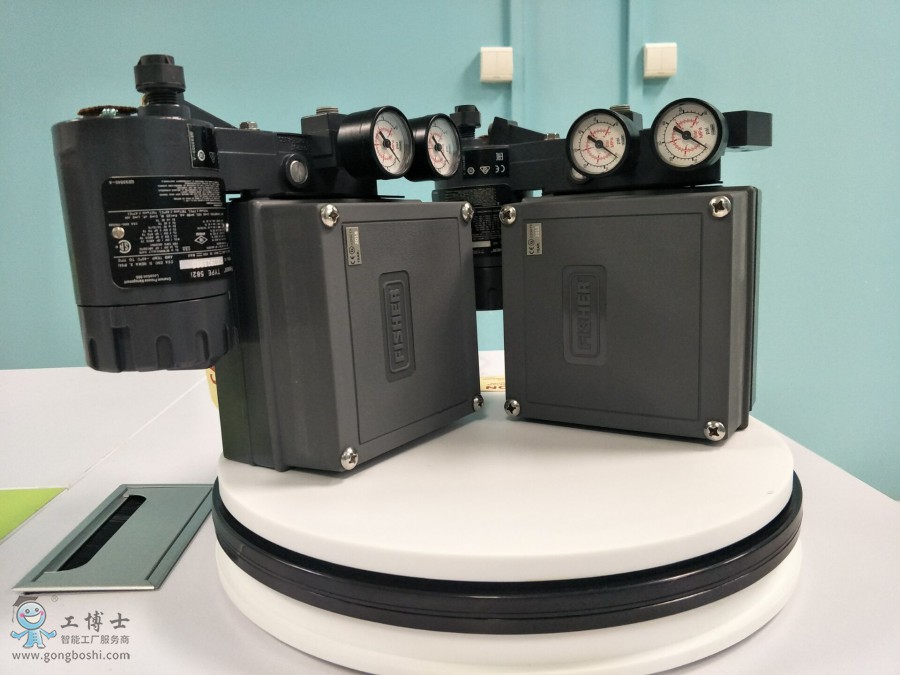

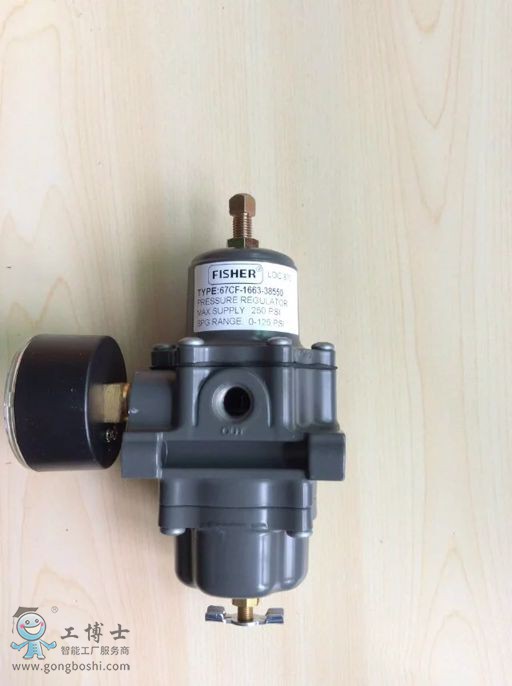

Procontrol快超快系列 配套FISHER3582I 閥門定位器 和 67CF 過濾減壓閥
ProControl通過開發氣動和液壓單作用執行器，設計了一個超快的應用.快速操作由彈簧執行，但對于這一點特殊應用汽缸裝有一個特殊積分阻尼器.
特點
該整體阻尼器由2路2位特殊引航整體大流量排放閥組成，
完整的行程阻尼器的整體端部安全地保護閥門軸和閥座元件。
從汽缸中快速排放空氣/油大約有一段時間。80%-85%的中風，
然后中風的*后一部分就會受潮。這個裝置裝有一個專用流量調節器，
這也允許調整末端沖程速度。
在不同的執行過程中，可以使用整體阻尼器：鋁合金或AISI 316.
DESCRIPTION

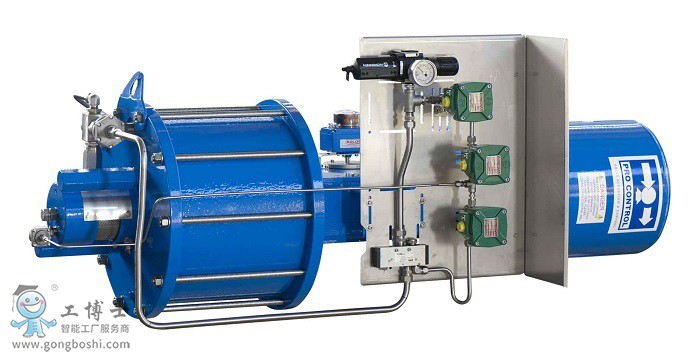

ProControl designed an ultra-fast application by developing the single acting actuators, both pneumatic and hydraulic. The fast operation is performed by the spring, but for this special APPLICATION the cylinder is fitted with a special INTEGRAL DAMPER. The integral damper consists of a 2 way 2 position special piloted integral high flow discharge valve, complete with an integral end of stroke damper which safe guards the valve shaft and seating elements. The quick discharge of air / oil from the cylinder occurs for approximately 80-85% of the stroke, then the last part of the stroke is dampened. The device is fitted with a dedicated flow regulator, which allows also adjusting the end stroke speed. The INTEGRAL DAMPER is available in different executions: aluminium alloy or AISI 316.
