Main feartures:

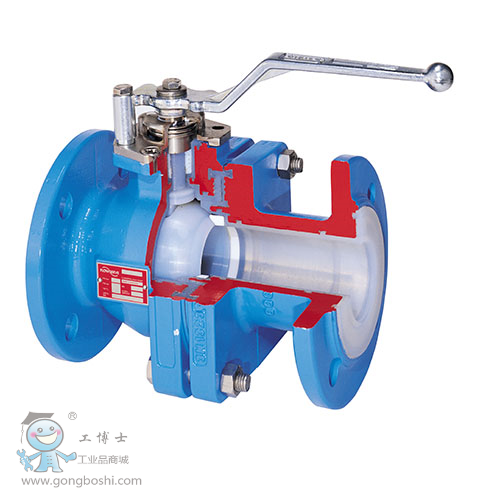

The AKH2.2 Lined Full Port Ball Valve is a two-piece lined ball valve which offers high safety factors, high stability, rigidity and eliminates a potential leak path.

Atomac lined ball valves are engineered to include a free floating ball design which offers the following benefits:

1. Low frictional coefficients resulting in low operating torques

2. Positive shut-off across the pressure range

3.Reduction of stem side loads, eliminating potential leaks to atmosphere through the valve gland

4. A real anti blow-out stem design that offers increased safety - each lined ball valve has its anti-static device, which provides protection against potentially dangerous electrostatic discharges

5. Long life seats, large stem sealing area as well as the substantial middle flanges and the molded liner take care for a leak and trouble-free valve and minimizes downtime and maintenance

6. A wide range of liner material can be selected from FEP, PFA, Tefzel, PP, PVDF as well as conductive PFA
