施耐德電氣C120H系列樣本下載：

施耐德斷路器C120H-D系列的描述：
性能描述斷路器：額定電流-63,80,100,125A 分斷能力-10kA(C120H)/15kA(C120L) 極數-1,2,3,4P 脫扣曲線-C,D曲線剩余電流動作保護附件：額定電流- ≤125A 極數-2,3,4P 動作電流-30,300,300s,500mA 保護類型-電磁式電氣附件與機械輔助裝置：與C65通用（除掛鎖附件）

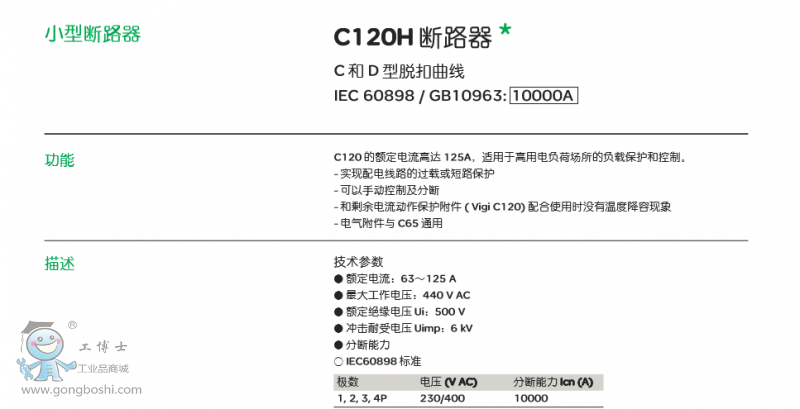

C120 斷路器
標準：IEC 60898/GB 10963
脫扣曲線：B(C120H)/C/D
*大工作電壓： AC 440V
額定電流：63~125A
分斷能力：10/15kA
	References			Description
	訂貨號			說明
A9N19560		C120H	2P	B 125A
A9N19558		C120H	3P	B 100A
A9N19559		C120H	3P	B 125A
A9N19800		C120H	1P	C 63A
A9N19808		C120H	1P	C 80A
A9N19816		C120H	1P	C 100A
A9N19824		C120H	1P	C 125A
A9N19801		C120H	2P	C 63A
A9N19809		C120H	2P	C 80A
A9N19817		C120H	2P	C 100A
A9N19825		C120H	2P	C 125A
A9N19802		C120H	3P	C 63A
A9N19810		C120H	3P	C 80A
A9N19818		C120H	3P	C 100A
A9N19826		C120H	3P	C 125A
A9N19803		C120H	4P	C 63A
A9N19811		C120H	4P	C 80A
A9N19819		C120H	4P	C 100A
A9N19827		C120H	4P	C 125A
A9N19804		C120H	1P	D 63A
A9N19812		C120H	1P	D 80A
A9N19820		C120H	1P	D 100A
A9N19828		C120H	1P	D 125A
A9N19805		C120H	2P	D 63A
A9N19813		C120H	2P	D 80A
A9N19821		C120H	2P	D 100A
28/55
A9N19829		C120H 2P D 125A
A9N19806		C120H 3P D 63A
A9N19814		C120H 3P D 80A
A9N19822		C120H 3P D 100A
A9N19830		C120H 3P D 125A
A9N19807		C120H 4P D 63A
A9N19815		C120H 4P D 80A
A9N19823		C120H 4P D 100A
A9N19831		C120H 4P D 125A
A9N19832		C120L 1P C 63A
A9N19840		C120L 1P C 80A
A9N19848		C120L 1P C 100A
A9N19856		C120L 1P C 125A
A9N19833		C120L 2P C 63A
A9N19841		C120L 2P C 80A
A9N19849		C120L 2P C 100A
A9N19857		C120L 2P C 125A
A9N19834		C120L 3P C 63A
A9N19842		C120L 3P C 80A
A9N19850		C120L 3P C 100A
A9N19858		C120L 3P C 125A
A9N19835		C120L 4P C 63A
A9N19843		C120L 4P C 80A
A9N19851		C120L 4P C 100A
A9N19859		C120L 4P C 125A
A9N19836		C120L 1P D 63A
A9N19844		C120L 1P D 80A
A9N19852		C120L 1P D 100A
A9N19860		C120L 1P D 125A
A9N19837		C120L 2P D 63A
A9N19845		C120L 2P D 80A
A9N19853		C120L 2P D 100A
A9N19861		C120L 2P D 125A
A9N19838		C120L 3P D 63A
A9N19846		C120L 3P D 80A
A9N19854		C120L 3P D 100A
A9N19862		C120L 3P D 125A
A9N19839		C120L 4P D 63A
A9N19847		C120L 4P D 80A
A9N19855		C120L 4P D 100A
A9N19863		C120L 4P D 125A
29/55		價格變更，恕不事前通知
Vigi C120 電磁式剩余電流動作保護附件
標準: EN 61009-1/GB 16917.21
額定電流:	In≤125A
額定剩余動作電流：30/300/500 mA/AC類,300 mA S/AC類
References
訂貨號
A9N18563		Vigi	C120	AC
A9N18564		Vigi	C120	AC
A9N18544		Vigi	C120	AC
A9N18566		Vigi	C120	AC
A9N18567		Vigi	C120	AC
A9N18568		Vigi	C120	AC
A9N18546		Vigi	C120	AC
A9N18569		Vigi	C120	AC
A9N18570		Vigi	C120	AC
A9N18571		Vigi	C120	AC
A9N18548		Vigi	C120	AC
NG125H 斷路器
標準：IEC 60947-2/GB 14048.2
脫扣曲線：C/D
*大工作電壓： AC 500V
額定電流：10~80A
分斷能力：36kA
References				Description
訂貨號				說明
18705		NG125H	C	10A
18706		NG125H	C	16A
18707		NG125H	C	20A
18708		NG125H	C	25A
18709		NG125H	C	32A
18710		NG125H	C	40A
18711		NG125H	C	50A
18712		NG125H	C	63A
18713		NG125H	C	80A
18714		NG125H	C	10A
18715		NG125H	C	16A
18716		NG125H	C	20A
18717		NG125H	C	25A
18718		NG125H	C	32A
18719		NG125H	C	40A
18720		NG125H	C	50A
18721		NG125H	C	63A
18722		NG125H	C	80A
18723		NG125H	C	10A
18724		NG125H	C	16A
18725		NG125H	C	20A
18726		NG125H	C	25A
18727		NG125H	C	32A
18728		NG125H	C	40A
18729		NG125H	C	50A
18730		NG125H	C	63A
18731		NG125H	C	80A
30/55
