TESCOM 44-2900系列 背壓調壓閥-艾默生EMERSON

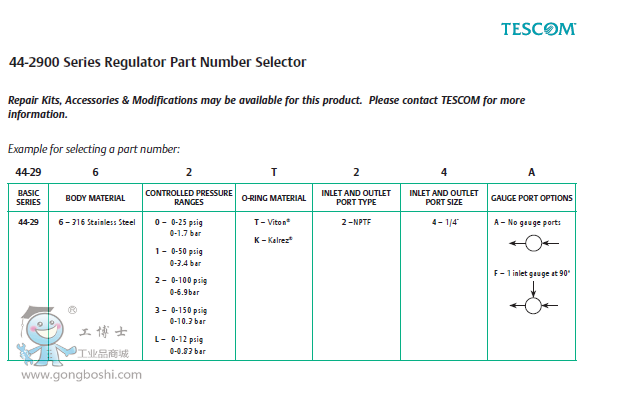

TESCOM 44-2960T24A,44-2960T24F,44-2960K24A,44-2960K24F 調壓器

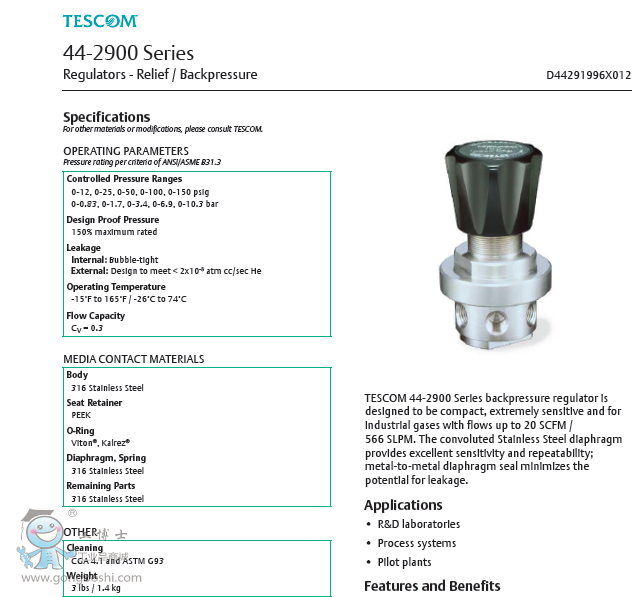

TESCOM 44-2900 Series backpressure regulator is designed to be compact, extremely sensitive and for industrial gases with flows up to 20 SCFM /566 SLPM. The convoluted Stainless Steel diaphragm provides excellent sensitivity and repeatability; metal-to-metal diaphragm seal minimizes the potential for leakage.
Applications
• R&D laboratories
• Process systems
• Pilot plants
Features and Benefits
• 316 Stainless Steel diaphragm provides metal-tometal sealing integrity and good sensitivity
• Large sensing seat area ratio provides a lowcrack to reseat pressure differential and excellent repeatability
• Bubble-tight shutoff at all reseating pressures
• Flow capacity Cv = 0.3
• Panel mounting is standard
• Suitable for non-corrosive and corrosive gases
